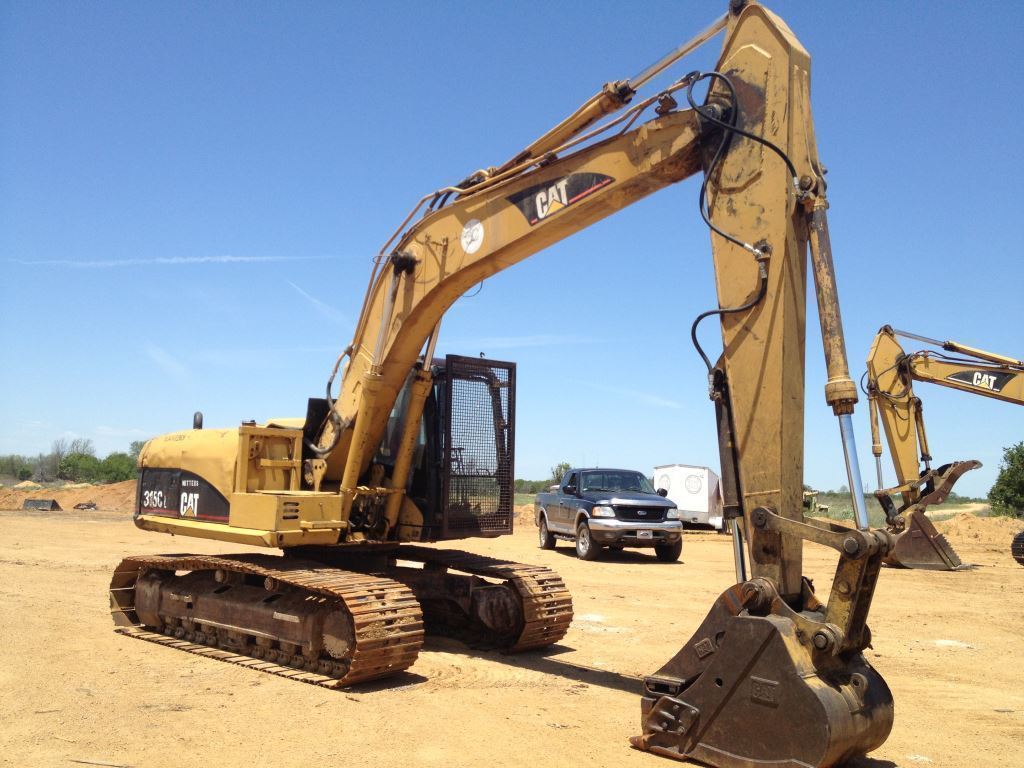

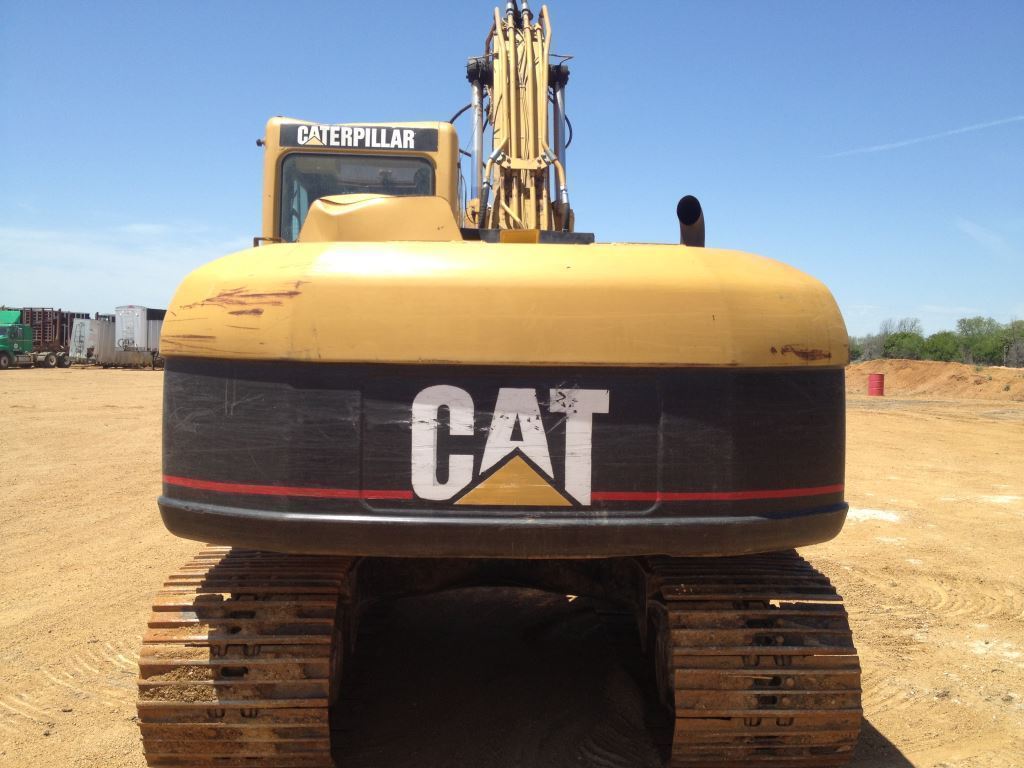

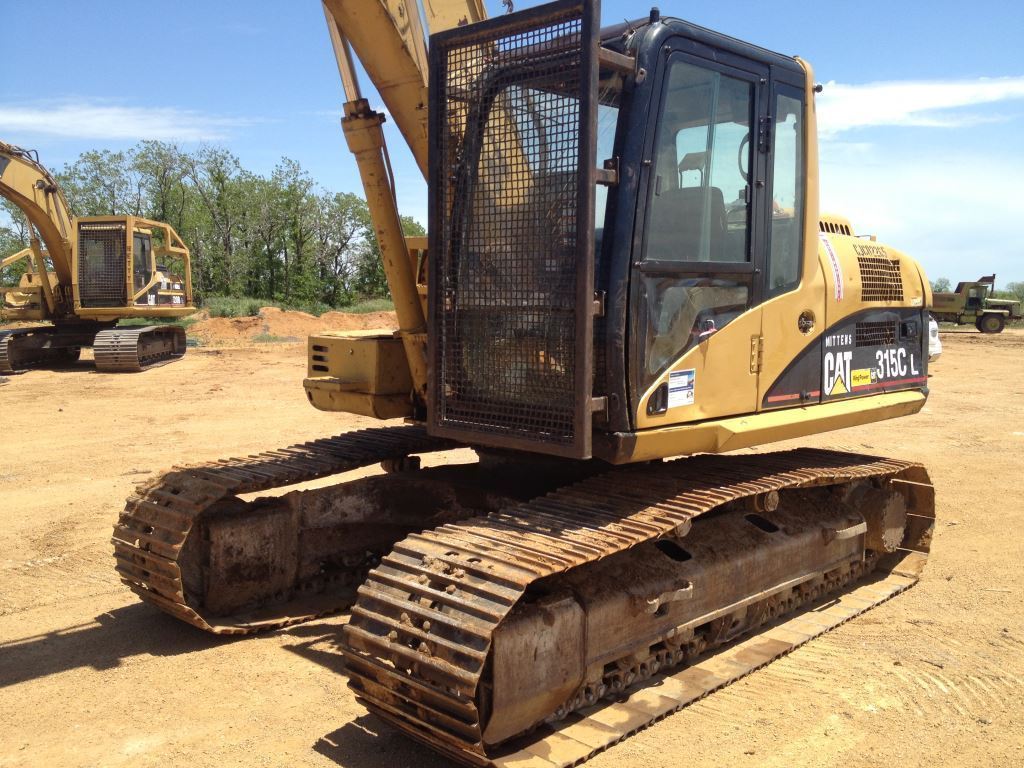

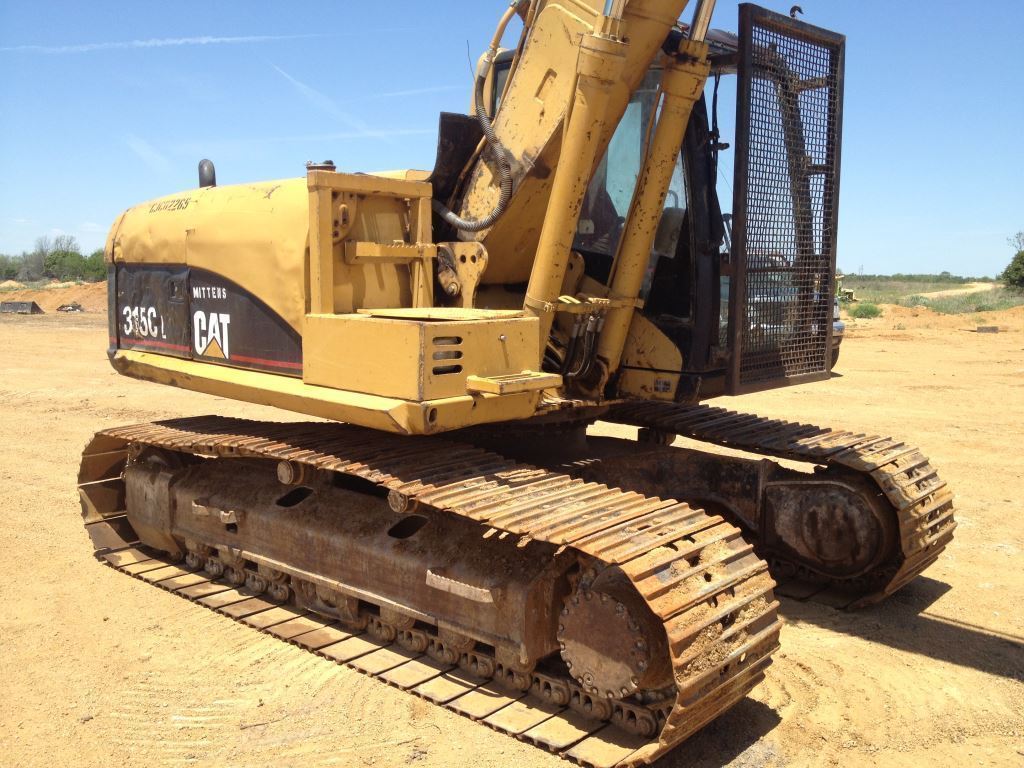

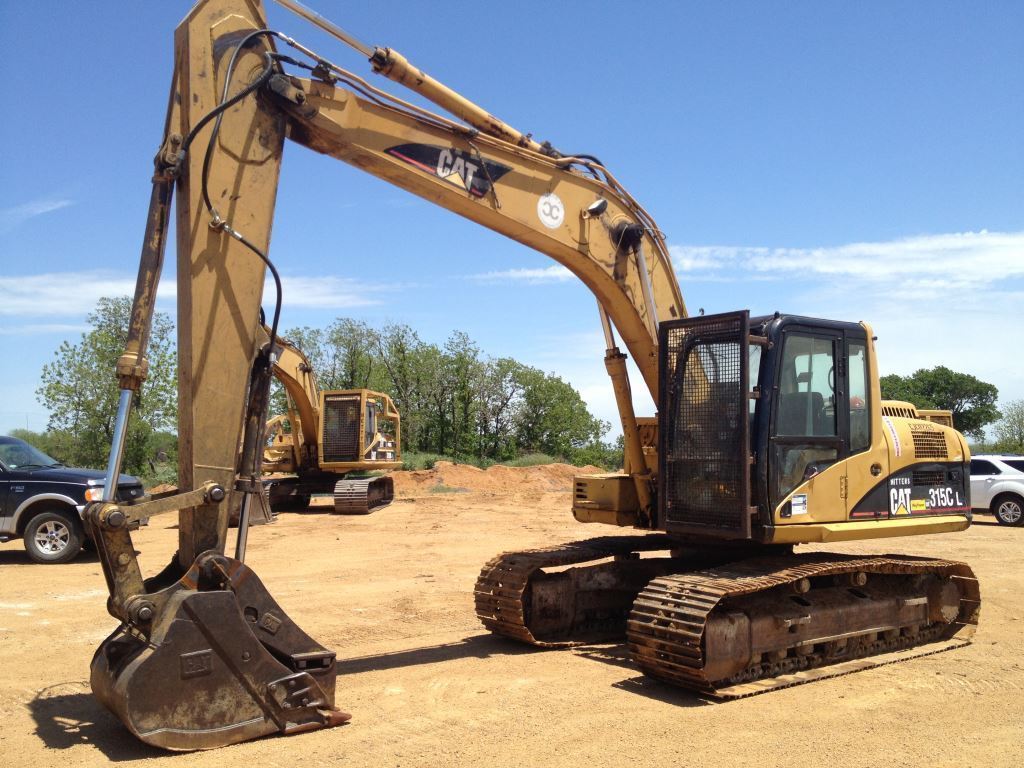

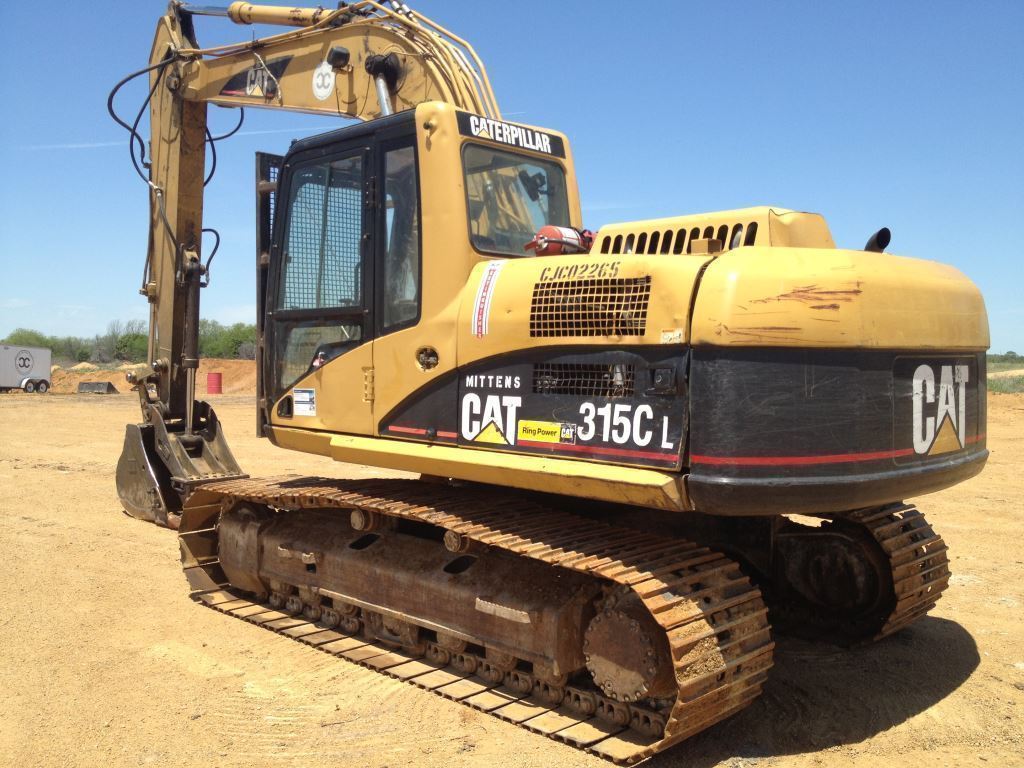

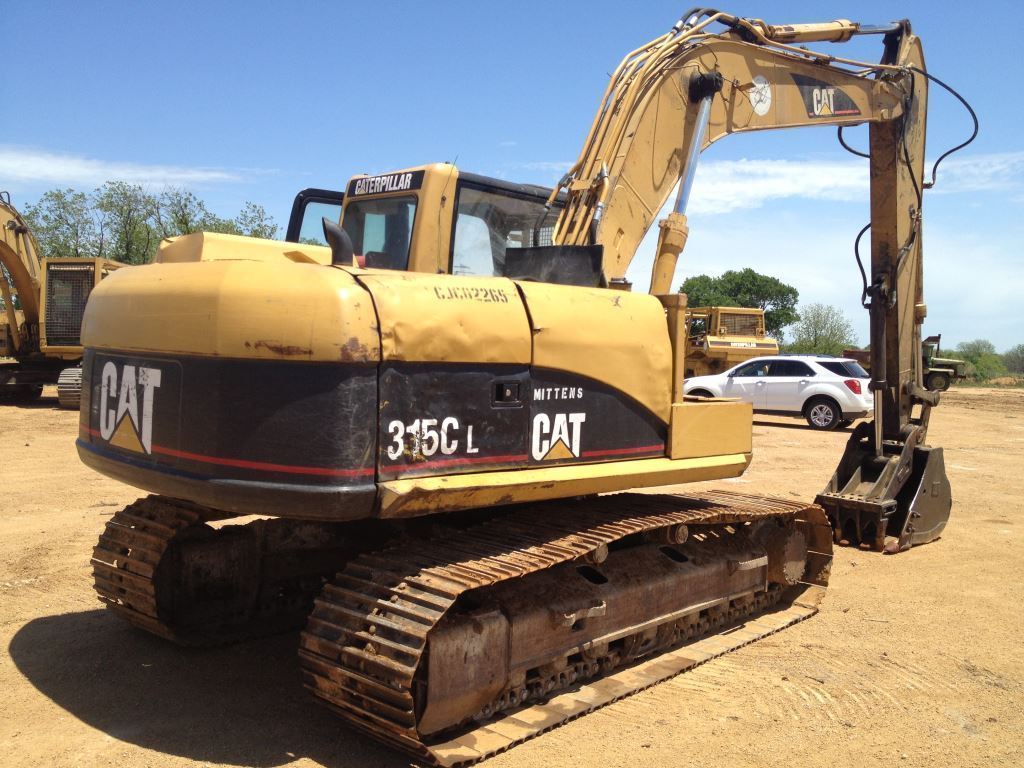

2005 CATERPILLAR 315CL

Description

Smu/hours: 9200
Years mfg: 2005
Engine make: CAT 3046T
Engine hp: 110 hp 82 kw

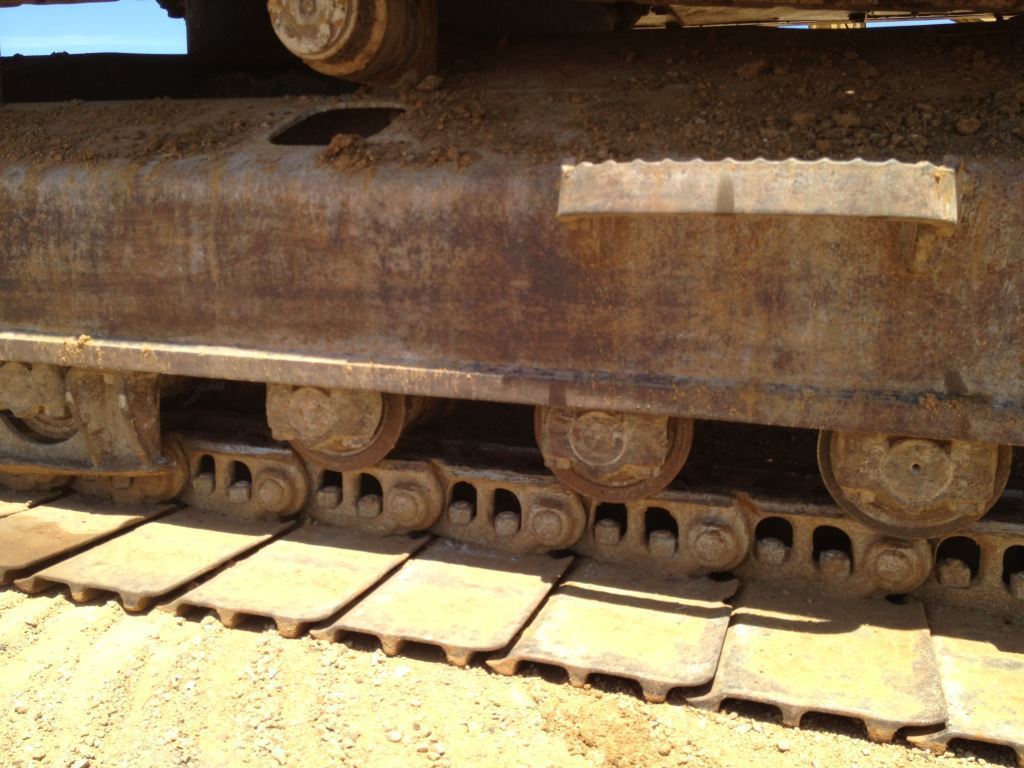

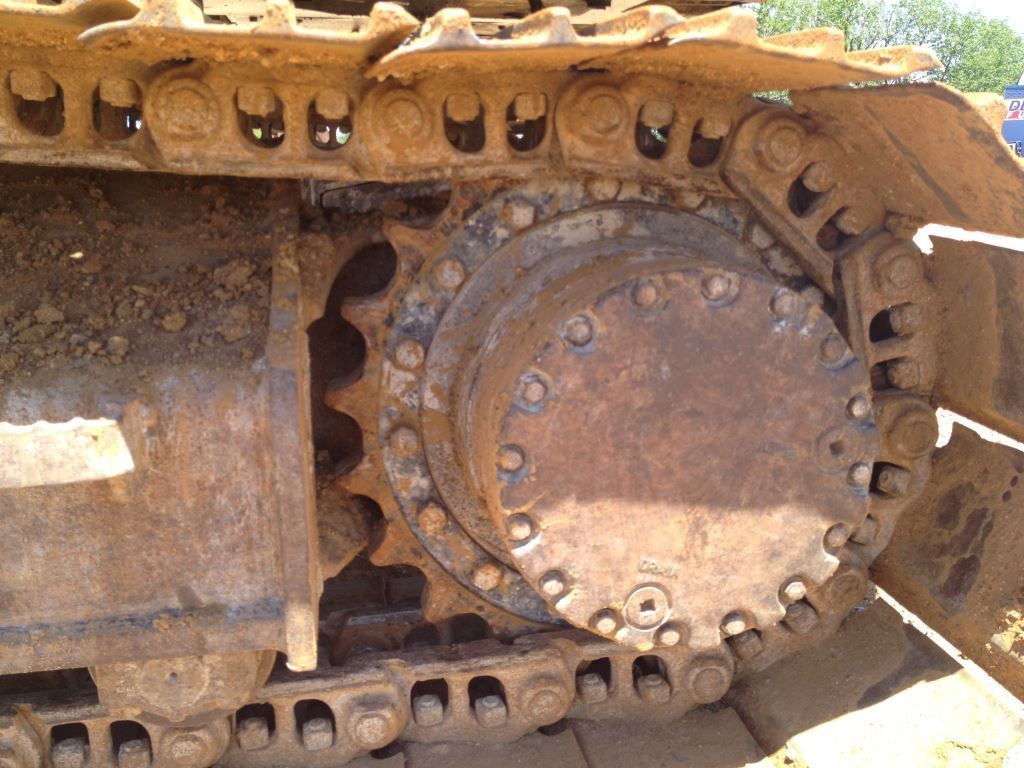

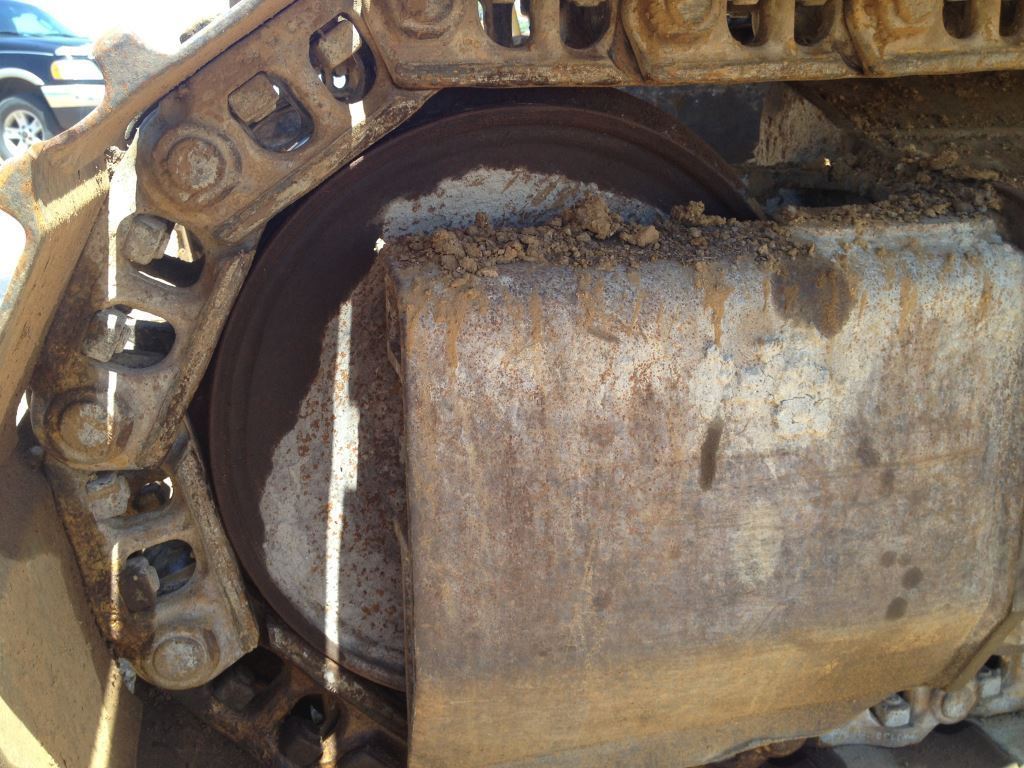

Carriage: CRWLR

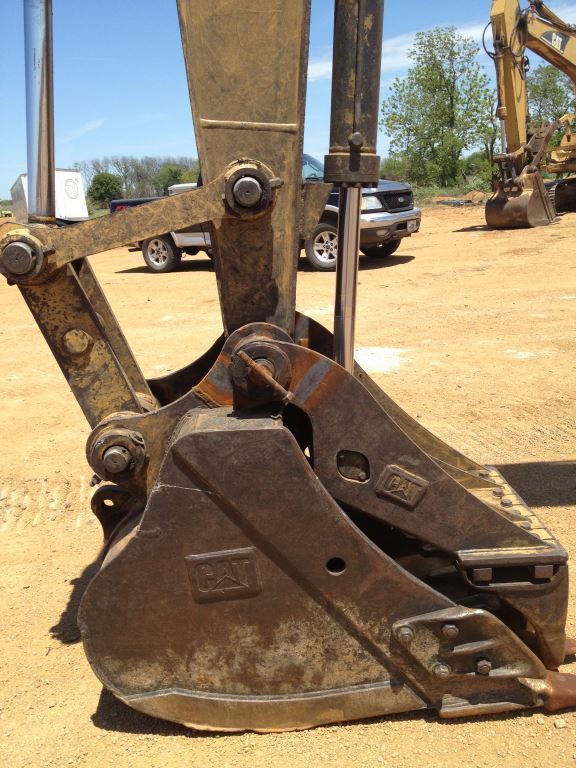

Bucket c.y: 1.1 yd3 0.86 m3
Weight: 36930lb 16750 kg
Fuel tank: 75 Gal 285 lts
Power measured @: 1950 rpm
Displacement: 259 cu in 4.3 L

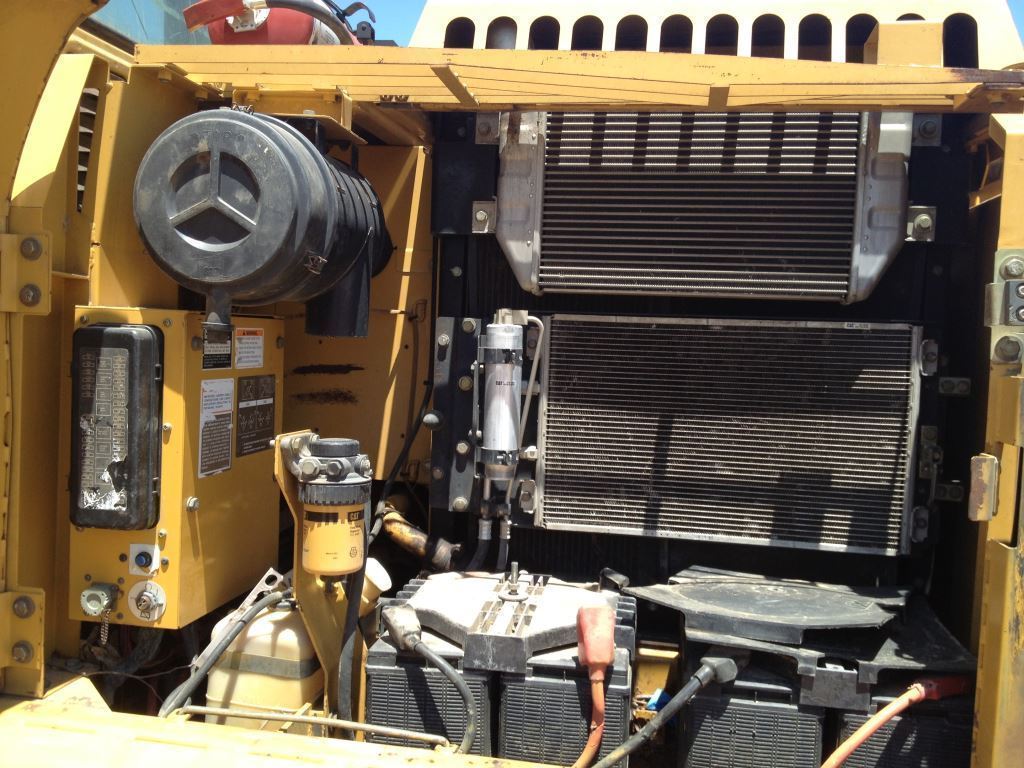

Cooling system fluid capacity: 4.6 gal 17.5 L
Hydrauilc system fluid capacity: 42.8 gal 162 L
Engine oil capacity: 4.6 gal 17.5 L
Swing drive fluid capacity: 0.8 gal 3 L
Operating voltage: 24 V
Hydraulic system relief valve pressure: 4340 psi 29900 kPa

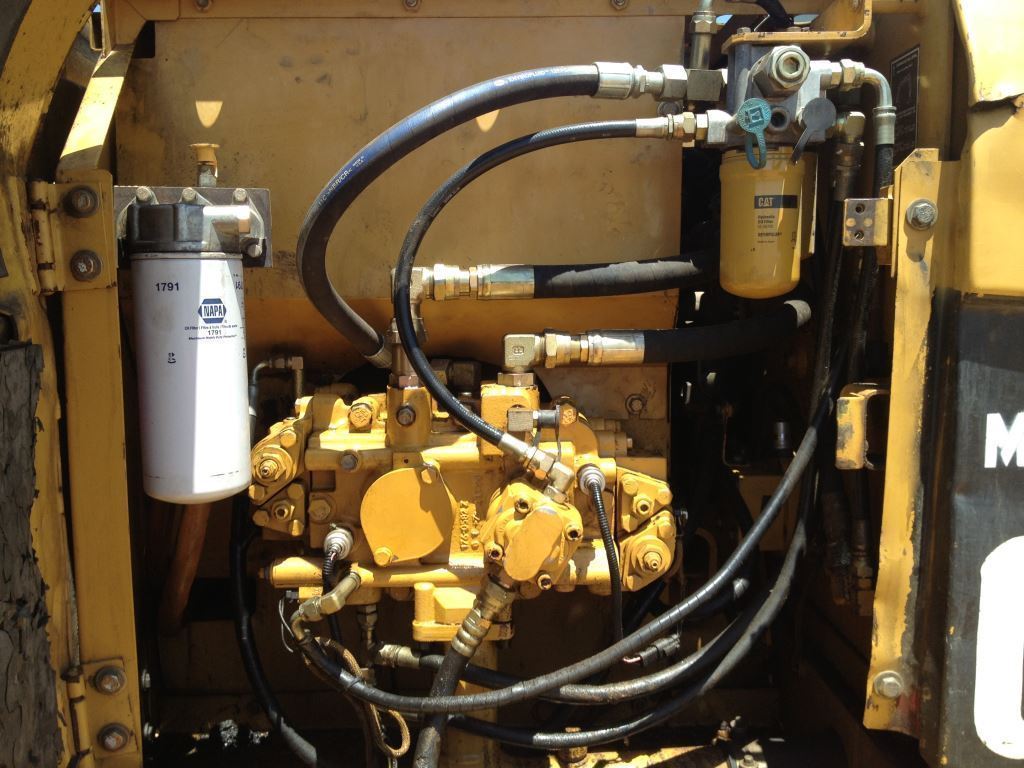

Hydraulic pump flow capacity: 33.5 gal/min 127 L/min
Swing speed: 12.9 rpm
Swing torque: 22496 lb ft 30500 Nm
Shoe size: 24 in 600 mm
Ground pressure: 4.5 psi 31 kPa
Max travel speed: 3.4 mph 5.5 km/h
Drawbar pull: 24720 lb 110 kN

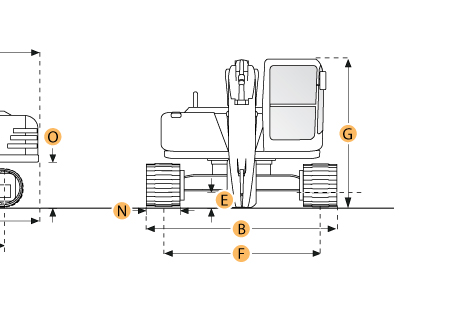

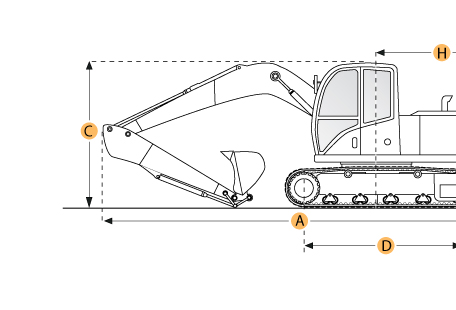

Track gauge: 6.5 ft in 1990 mm
Width to outside of tracks: 8.5 ft in 2590 mm
Height to top of cab: 9.4 ft in 2880 mm
Tail swing radius: 8 ft in 2450 mm
Length with bucket on ground: 10.4 ft in 3170 mm
Shipping length of unit: 27.8 ft in 8470 mm
Shipping height of unit: 9.4 ft in 2880 mm

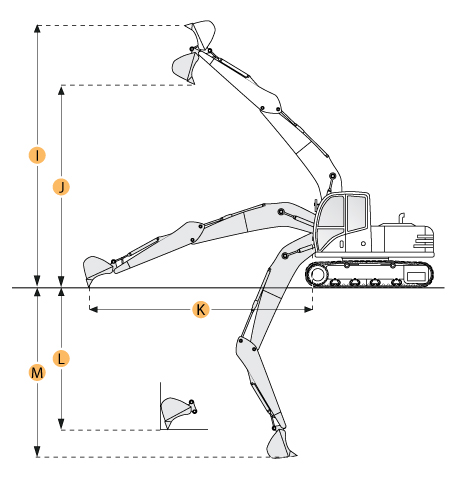

Max cutting height: 28.7 ft in 8735 mm
Max loading height: 20.2 ft in 6150 mm
Max reach along ground: 27.6 ft in 8420 mm
Max vertical wall digging depth: 16.2 ft in 4930 mm
Max digging depth: 18.8 ft in 5705 mm
Ground clearance: 1.5 ft in 460 mm
