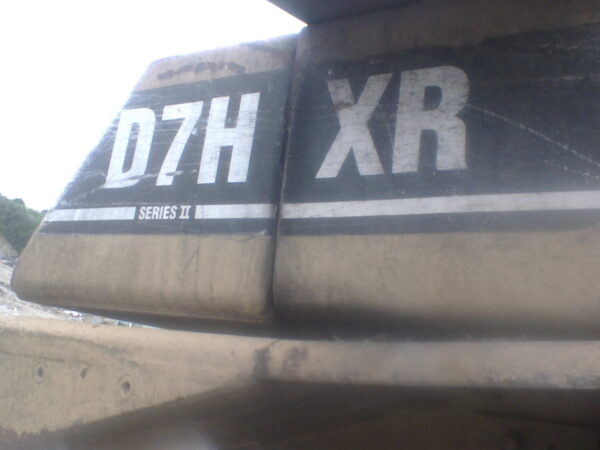

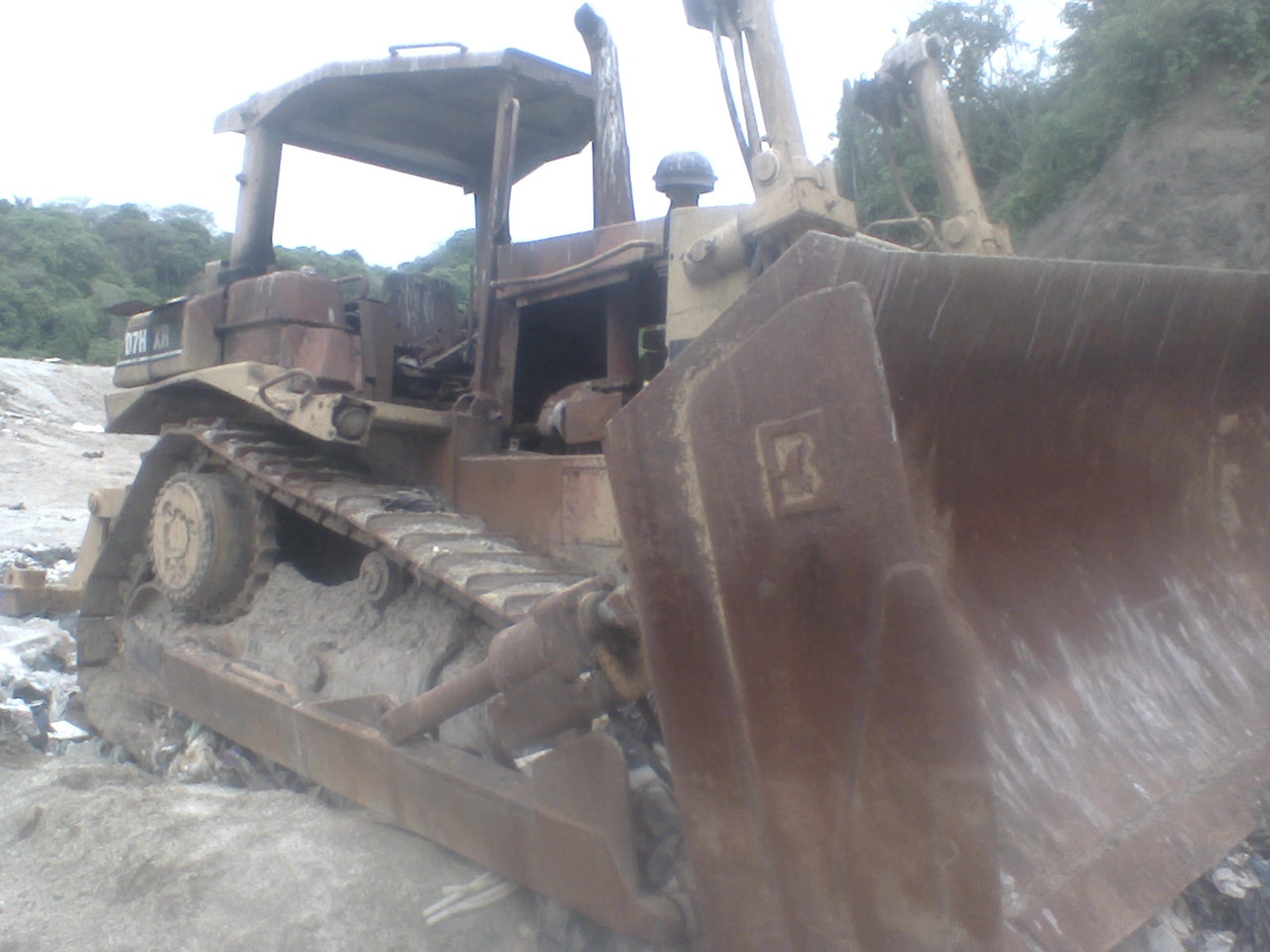

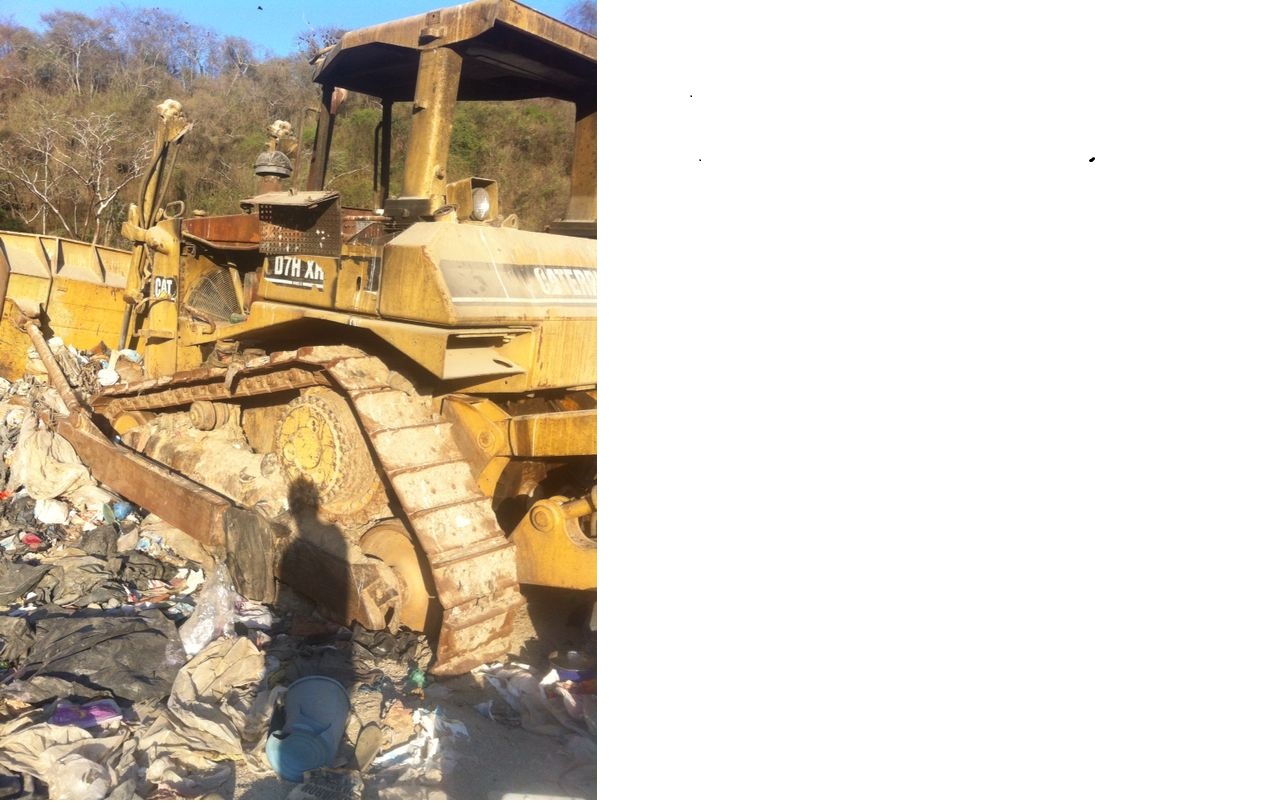

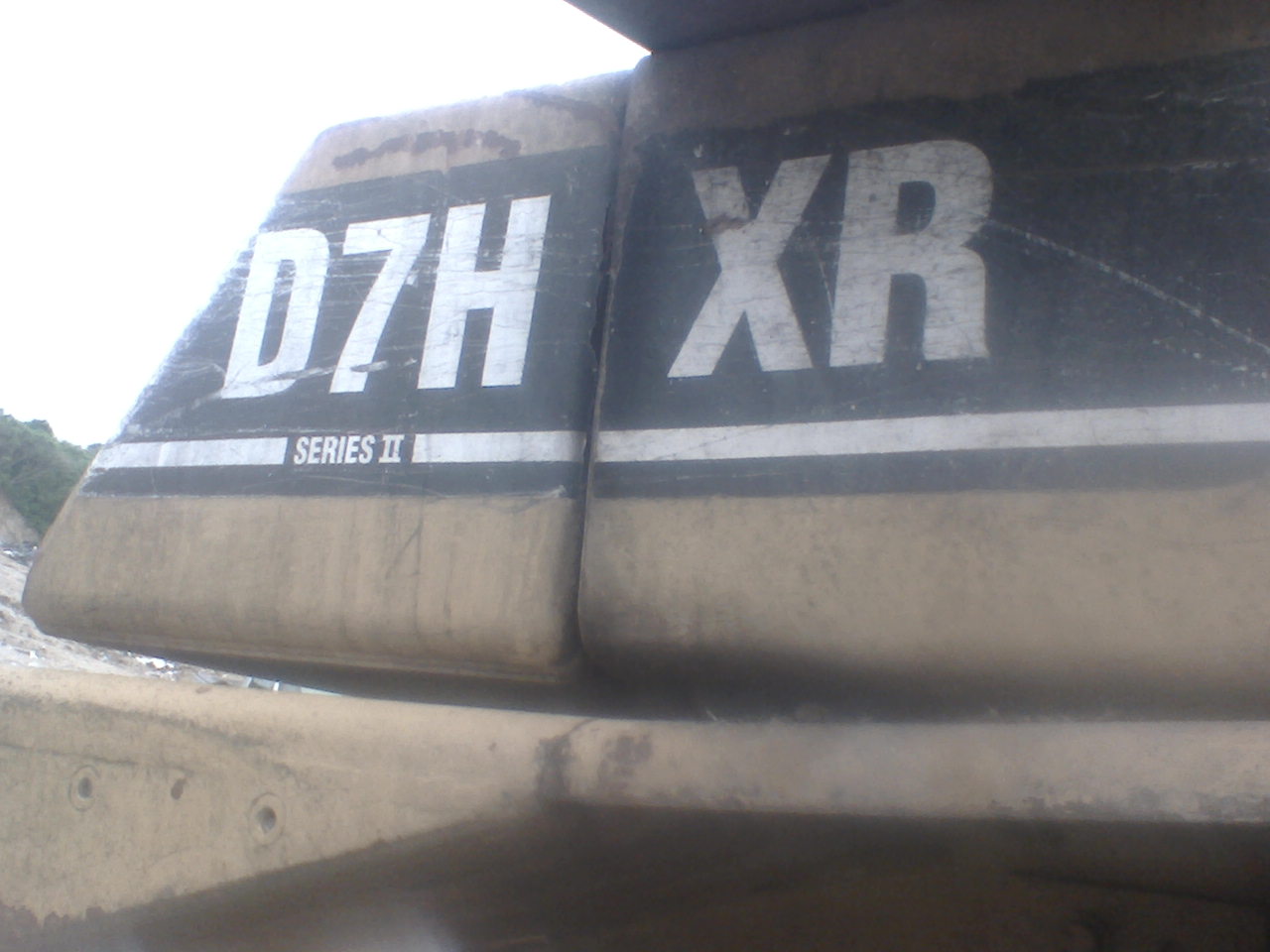

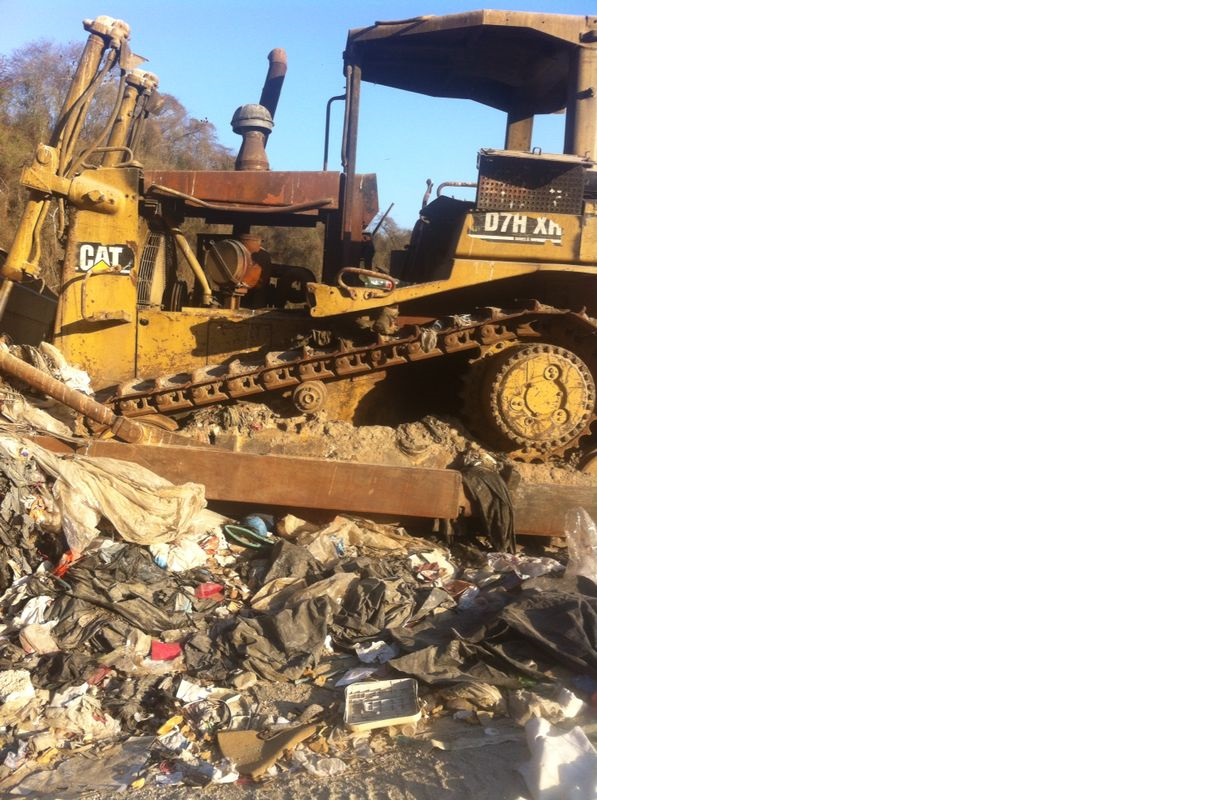

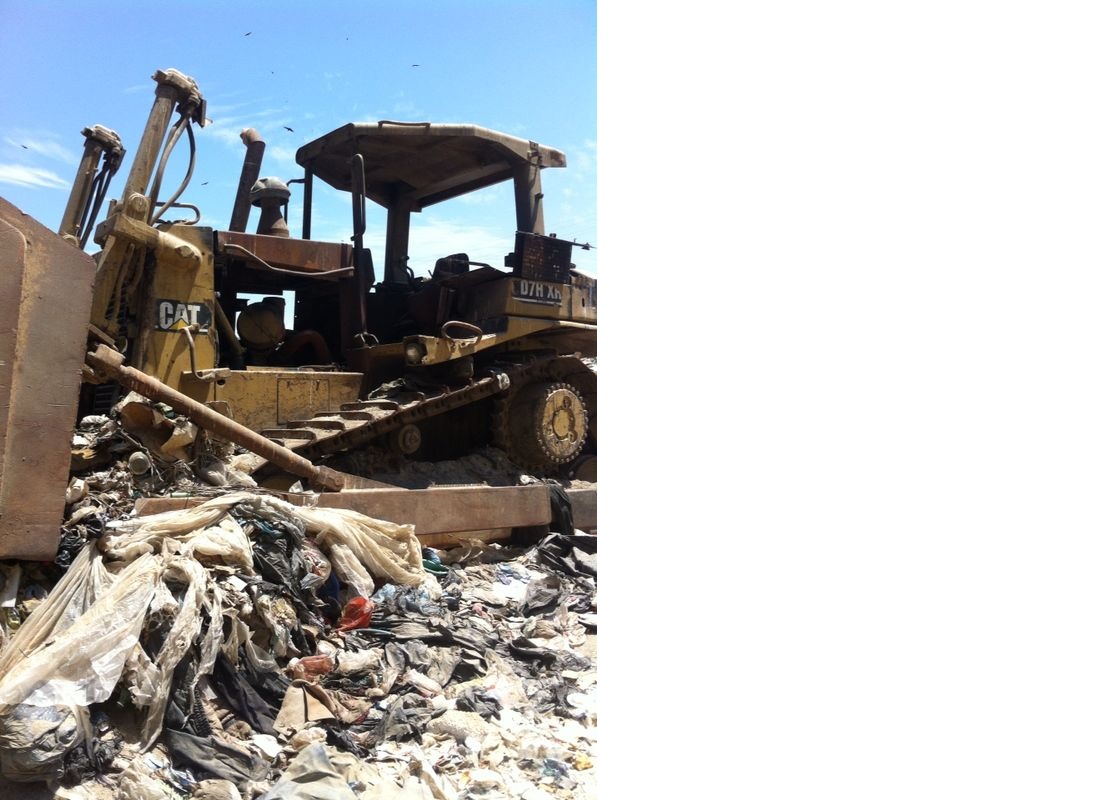

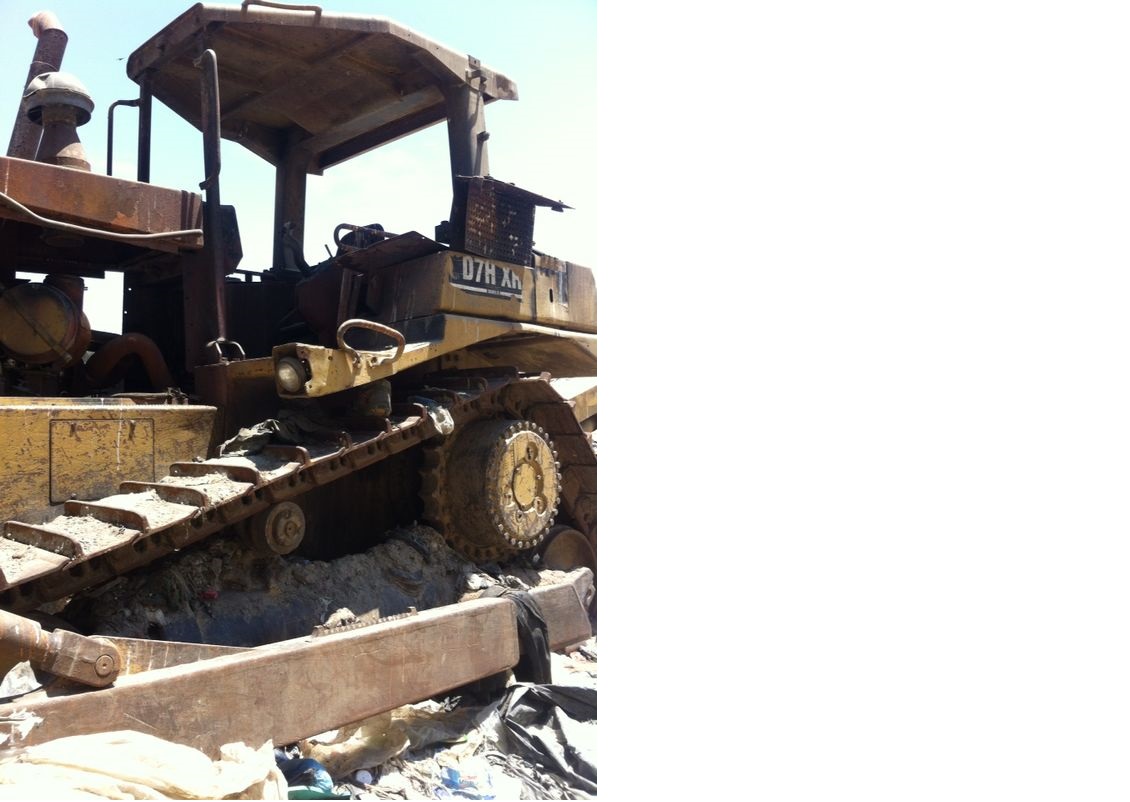

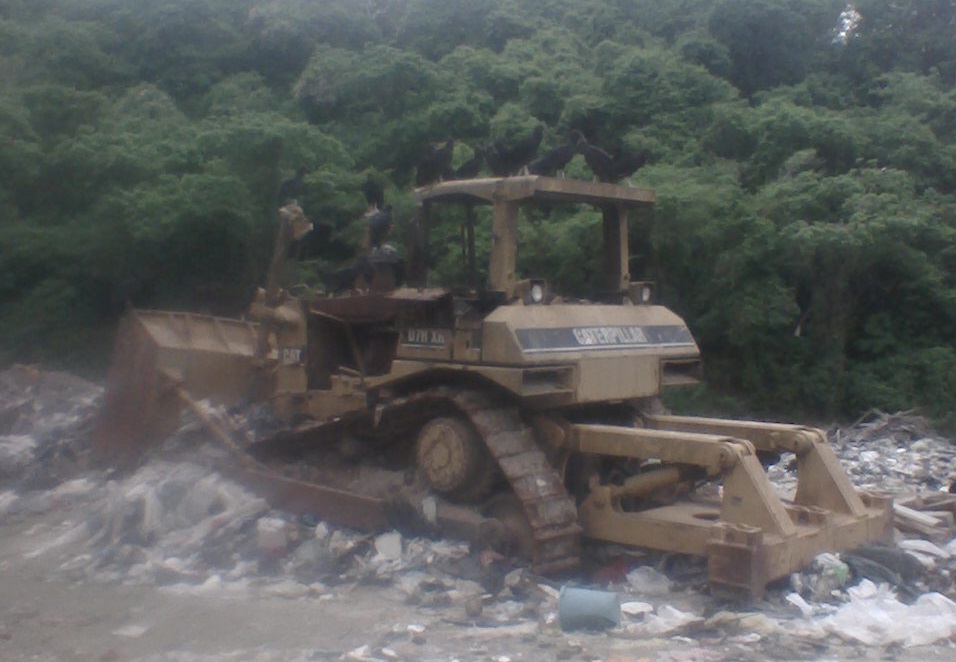

1997 CATERPILLAR D7H XR(5BF,2RG)

Description

Engine make: CAT 3306
Engine hp: 230
Transmission: Good
Weight: 52134 LB
Fuel capacity: 128.9 gal 488 L
Hydrauilc system fluid capacity: 13.7 gal 52 L
Number of forward gears: 3
Number of reverse gears: 3
Max speed: 7.4 mph 11.9 km/h
Max speed – reverse: 8.9 mph 14.3 km/h
Standard shoe size: 22 in 560 mm
Number of track rollers per side: 7
Track gauge: 6.5 ft in 1980 mm
Ground pressure: 10.6 psi 73 kPa
Ground contact area: 5022 in2 3.2 m2
Hydraulic system relief valve pressure: 3300 psi 22752.7 kPa
Hydraulic pump flow capacity: 46.2 gal/min 175 L/min
Ripper pins: Very Good
Ripper shanks: Very Good

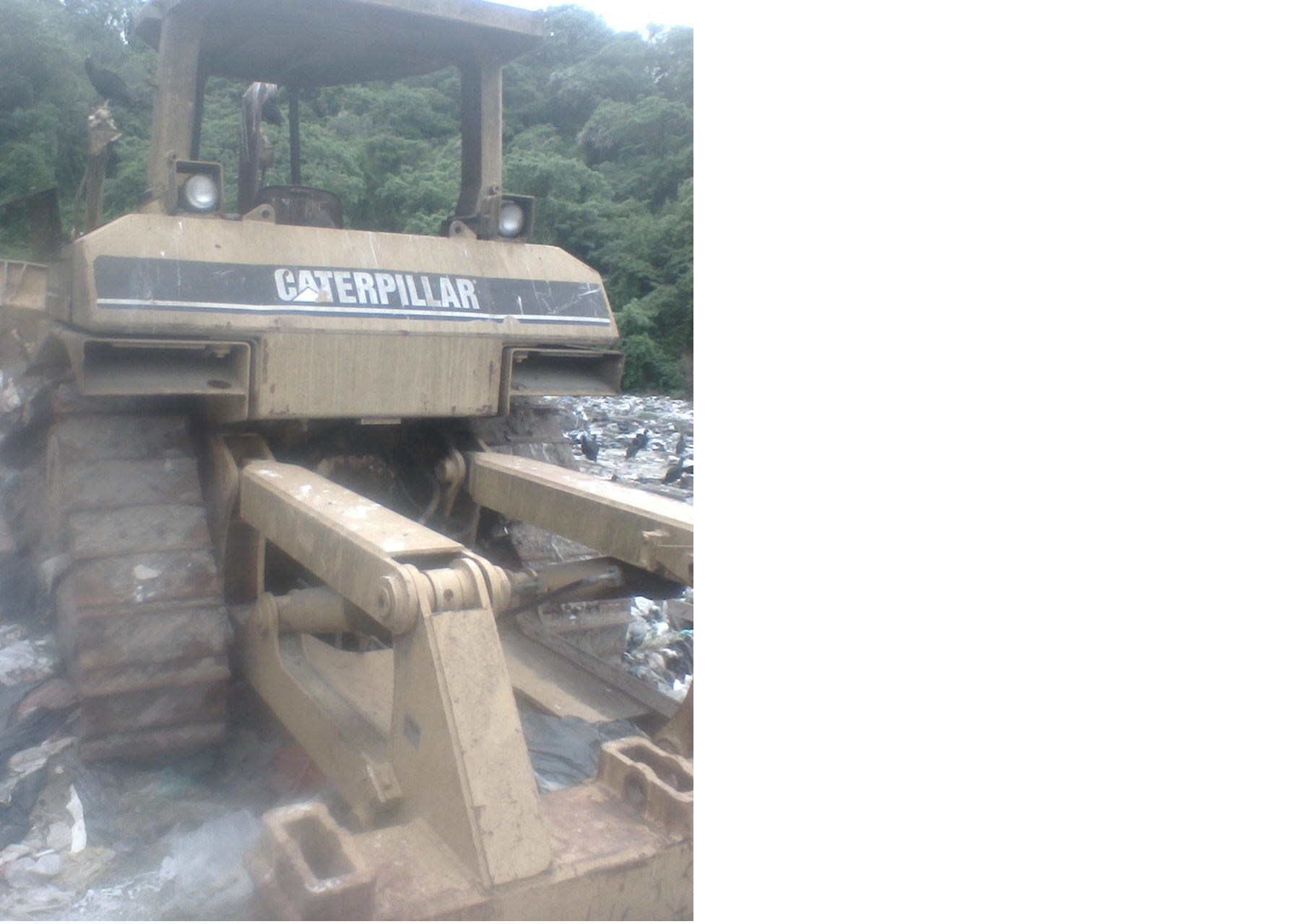

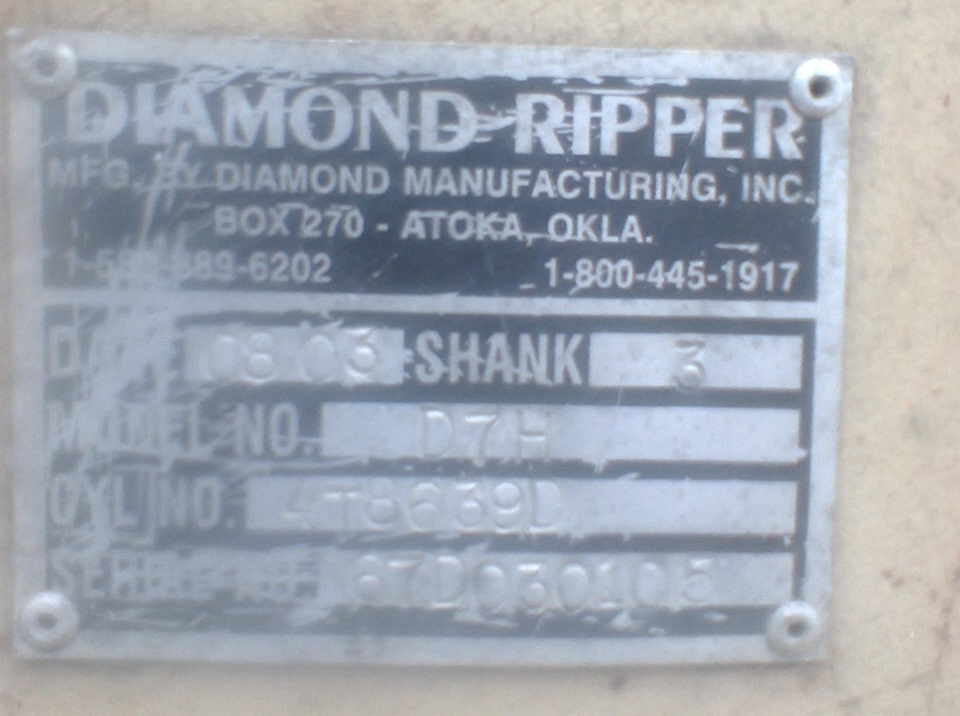

Ripper: Very Good
Appearance: Fair
Steering clutch: Good
Cross shaft: Good
Ripper shanks very good: RIPPER Very Good
Radiator: Fair
Canopy: Fair
Electrical system: Fair
Alternator: Good
Radiator fair: ALTERNATOR Good
Canopy fair: ELECTRICAL SYSTEM Fair
Diff steer: Good
Diff steer good: STEERING CLUTCH Good
General condition: Fair
Frame good: GENERAL CONDITION Fair
Frame: Good
Steer linkage: Good
Steer linkage good: CROSS SHAFT Good
Planetaries(r): Good
Carrier rollers front good: RAILS Good
Planetaries(l): Good
Hydraulics: Good
Brakes fair: HYDRAULICS Good
Cylinders (lift): Good
Clutch(es) good: PLANETARIES(L) Good
Clutch(es): Good
Segments: Good
Width of shoes good: AVERAGE LIFE REMAINING Good
Width of shoes: Good
Engine: Fair
Final drive left: Fair

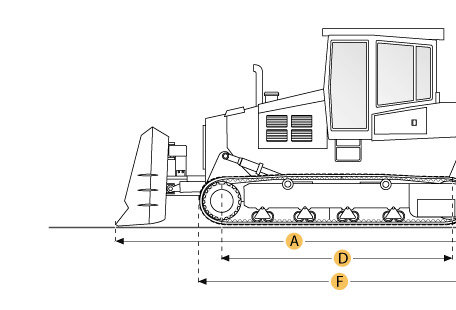

Length of track on ground: 9.5 ft in 2900 mm
Average life remaining: Good
Idlers good: PINS/BUSHINGS Good
Idlers: Good
Pins/bushings: Good
Pads: Good
Shoe type good: PADS Good

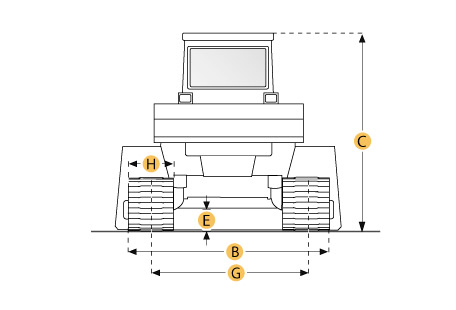

Width over tracks: 8.3 ft in 2540 mm
Height to top of cab: 11.2 ft in 3420 mm
Final drive right: Fair
Ground clearance: 1.3 ft in 406 mm
Length without blade: 15.2 ft in 4620 mm
Operating weight: 53340.8 lb 24195 kg

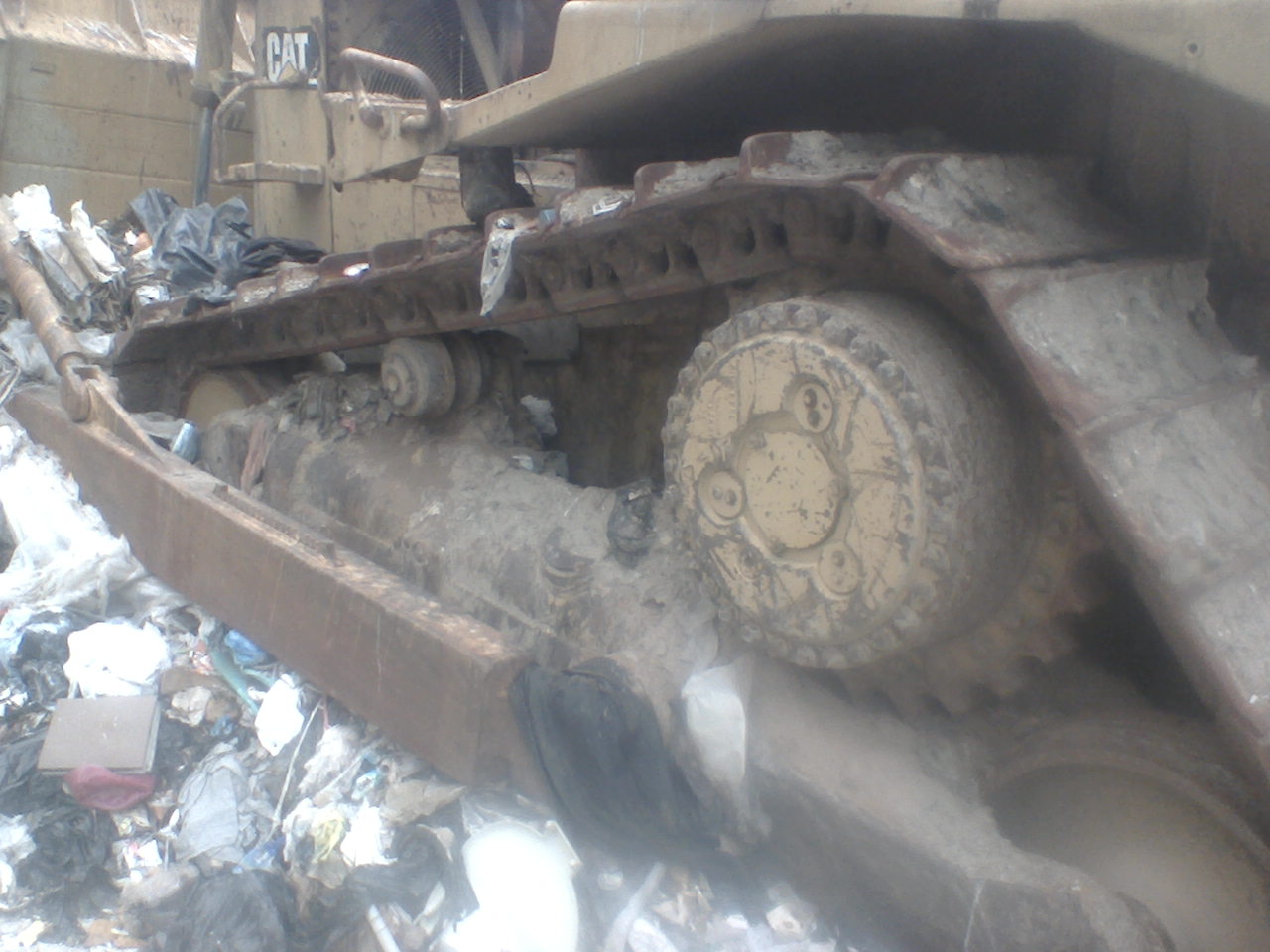

Sprockets good: TRACK ROLLERS Good
Sprockets: Good
Track rollers: Good
Carrier rollers front: Good
Rails: Good
Undercarriage (avg. condition) good: SEGMENTS Good
Undercarriage (avg. condition): Good
Shoe type: Good
Track shoes good: CARRIER ROLLERS REAR Good
Track shoes: Good
Carrier rollers rear: Good
Engine fair: PLANETARIES(R) Good

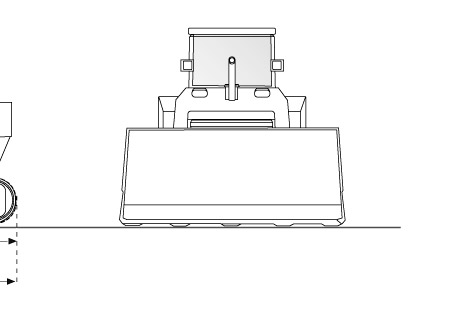

Length w/ blade: 18.2 ft in 5560 mm
Brakes: Fair
Transmission good: FINAL DRIVE LEFT Fair
